SD Series Plastic Extruders

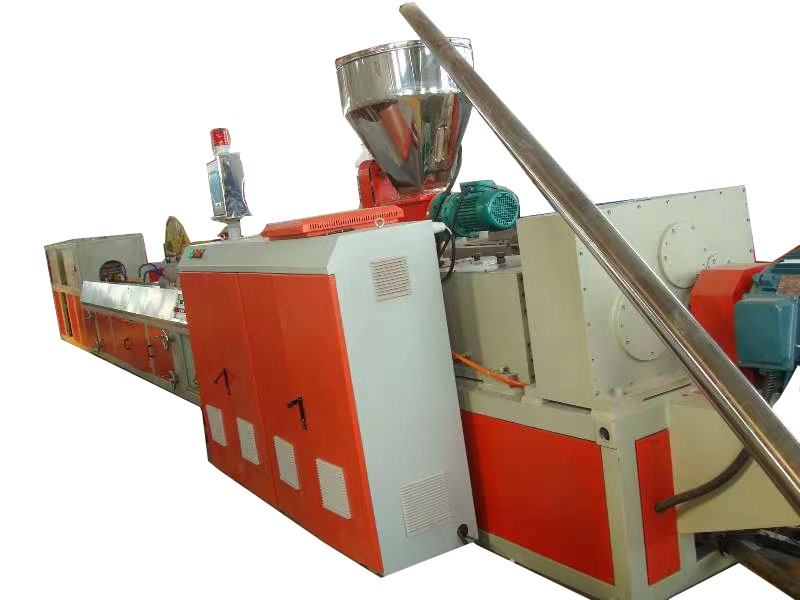

SJSZ Series Conical Twin Screw Extruder
It is the speciallydesigned equipment for processing and extruding of various kinds of materials such as PVC powder, PVC+ wood powder, PP/PE+ Wood powder
Drop us a line
Detail
It is the specially designed equipment for processing and extruding of various kinds of materials such as PVC powder, PVC+ wood powder, PP/PE+ Wood powder
Model | SJSZ45/90 | SJSZ51/105 | SJSZ55/110 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 |
Drive power(kw) | 15 | 18.5 | 22 | 37 | 55 | 110 |
Screw diameter(mm) | Φ45/Φ90 | Φ51/Φ105 | Φ55/Φ110 | Φ65/Φ132 | Φ80/Φ156 | Φ92/Φ188 |
Screw quantity | 2 | 2 | 2 | 2 | 2 | 2 |
Rotation speed(r/min) | 45 | 40 | 38 | 38 | 37 | 36 |
Screw Torque Nm | 3148 | 6000 | 7000 | 10000 | 14000 | 32000 |
Extrusion Capacity（kg/h) | 70 | 100 | 150 | 250 | 400 | 750 |
Center height（mm） | 1000 | 1000 | 1000 | 1000 | 1100 | 1200 |
Lx W x H（mm） | 3360x1290x2127 | 3360x1290x2127 | 3620x1050x2157 | 3715x1520x2450 | 4750x1550x2460 | 67250x1550x2814 |
