The mixer is mainly used for mixing and coloring PVC resin, coloring and drying polyethylene and polypropylene particles, drying ABS, polycarbonate resin and other hygroscopic resins before molding and processing, mixing phenolic resin and other processes. It is one of the necessary equipment for plastic processing plants, and it is also widely used in rubber, pharmaceutical, dye and other industries.

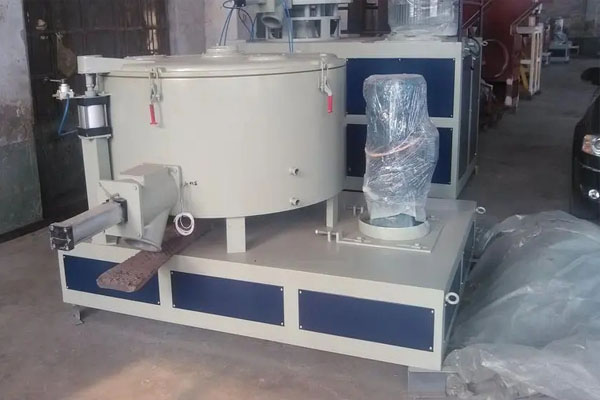

The utility model is composed of a pot body, a pot cover, a transmission part, a base, a discharge port and other parts. The pot body is welded by stainless steel, and the inner surface is extremely smooth and hard, with the characteristics of wear resistance, corrosion resistance, and not easy to touch points. The external surface of the pot is equipped with a heating jacket and a resistance heating ring. The temperature is directly transmitted to the pot body through the high ignition point mechanical oil in the heating jacket, so that the pot body can be heated evenly. The temperature of the materials in the pot can be controlled by adjusting the heating temperature. The jacket is covered with asbestos insulation.

The pot cover is made of aluminum alloy, and its inner surface has been finely turned and polished. It can rotate 70 ° horizontally clockwise along the vertical rotation axis, but do not rotate too hard to avoid damaging the pot wall. There are holes for adding resin, plasticizer and stabilizer on the cover, which can be arranged by users according to their own needs. The center is a vent hole. In order to prevent personal accidents caused by the rotation of the mixing paddle when the pot cover is not covered, a safety limit switch is installed on the pot body. When the pot cover is not covered tightly, the switch is not connected, and the motor cannot be started.

The deflector is used to enhance the mixing effect, and its diversion angle can be freely adjusted. A temperature measuring thermocouple is installed in the board, and the material temperature can be reflected and read out on the indicator (as shown in the figure "indicator"), which is also used to automatically control the automatic discharge of the discharge port.

The mixing paddle of the mixer is driven by the motor through the skin. The motor is an AC two speed motor, which can operate as long as the start button is pressed. The main shaft is supported by 312 and 314 bearings. There are three stirring paddles on the upper part of the
