SD Series Cast Film Production Line

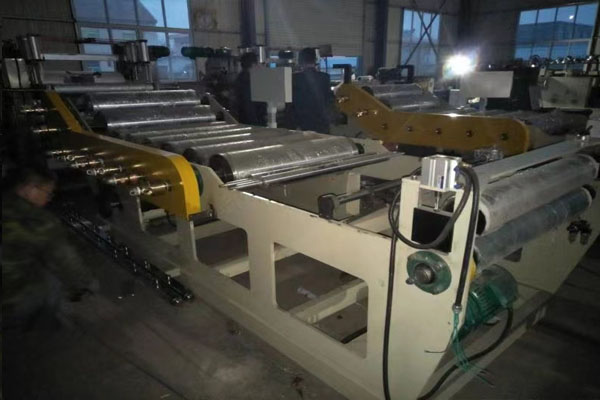

Plastic Calendering Machine Production Line
This calendaring machine is of multiple functions, is suitable to produce rigid PVC sheet and semi-rigid PVC sheet, filled plastic sheet, etc.The thickness of sheet product can reach to 0.03-0.90mm.
Drop us a line
Detail
This calendaring machine is of multiple functions, is suitable to produce rigid PVC sheet and semi-rigid PVC sheet, filled plastic sheet, etc.The thickness of sheet product can reach to 0.03-0.90mm.
Main Technical Parameters | ||
Thickness (mm) | 0.03-0.08mm | 0.08-0.90mm |
Capacity (kg/h) | 350-700kg/h | 700-1300kg/h |
Power (KW) | 55kw*2sets, 75KW*3 sets, Roll line speed: 0-40m/min | |
Hard gear reducer | 5 units，drive precision: grade 6 | |
Constant temperature oil station | 5sets, heating power: 40KW/Set | |
Auxiliary Machine: whole power 458KW, Heating Power: 220KW, Real need= 350kw/h | ||
