SD Series Plastic and WPC Profiles Production Line
PVC Window Sills Profile Production Line

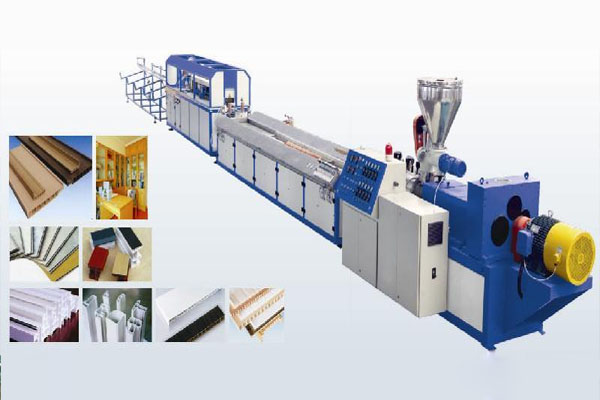

The production line consists of conical twin screw extruder, calibrating platform, haul-off, cutting machine, lamination machine and stacker, etc.
Drop us a line
Detail
The production line consists of conical twin screw extruder, calibrating platform, haul-off, cutting machine, lamination machine and stacker, etc.
Item | Description | Parameters |
1 | Material | Recycled PVC, with Auxiliary material |
2 | Window sills size | Width: 600, 700, 800mm and smaller |
3 | Production line speed | 0.5-1.5 m/min |
4 | Max. output | 280kg/h |
5 | Covering area of whole line | 23m × 2.5m × 3m L×W×H |
6 | Total power installed for the whole line | 185KW |
7 | Actual power consumption | 125KW (Approx.) |
8 | Management System | ISO9001:2000 |
9. | Market | We have exported window sills machine to Russia, Kazakhstan, Brazil, etc. |
10. | Service | Turnkey project, send technicians to buyer’s factory for installing and commissioning machines |
