SD Series Plastic Board/Plate Production Line

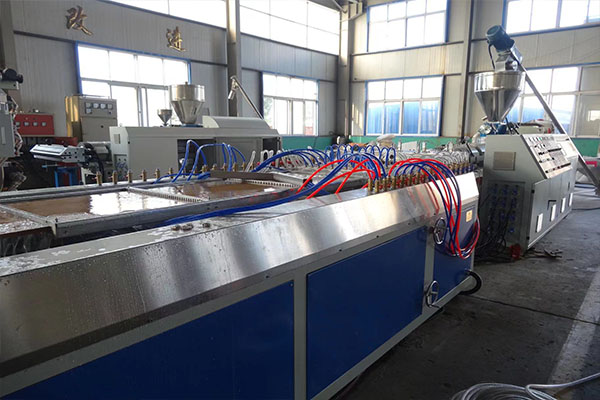

PVC and WPC Foamed Door Production Line

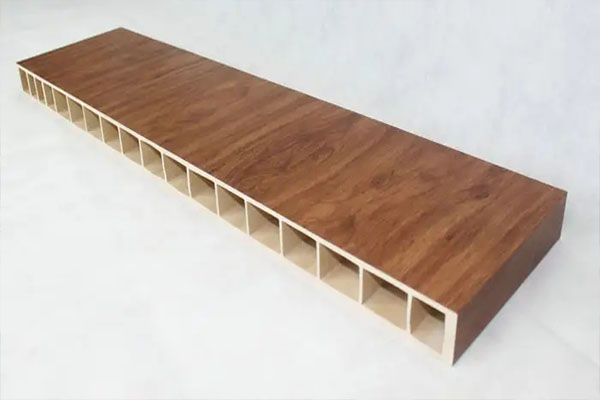

It’s used for the production of PVC foamed door and PVC wood plastic doors.
Drop us a line
Detail
It’s used for the production of PVC foamed door and PVC wood plastic doors.
Model | SD600 | SD800 | SD1000 | SD1250 |
Max. Product width(mm) | 600 | 800 | 1000 | 1250 |
Model of extruder | SJSZ 80/156 | SJSZ 80/156 | SJSZ 92/188 | SJSZ 92/188 |
Max. capacity (kg/h) | 360 | 360 | 600 | 600 |
Main motor (kw) | 55 | 75 | 110 | 110 |
Cooling water amount(m³/h) | 12 | 13 | 15 | 18 |
Compressed air consumption(m³/min) | 0.5 | 0.6 | 0.8 | 1 |
