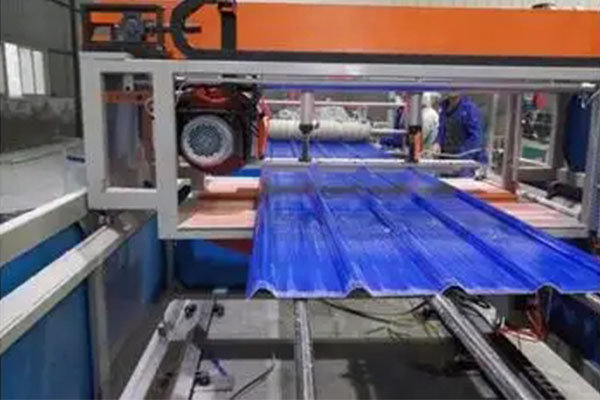

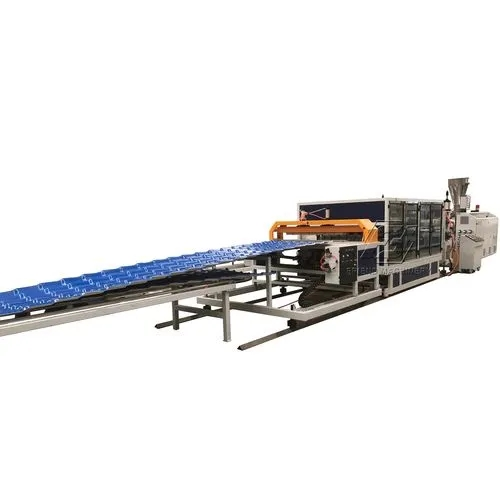

PVC Wavy Board & Trapezoidal Board Production Line

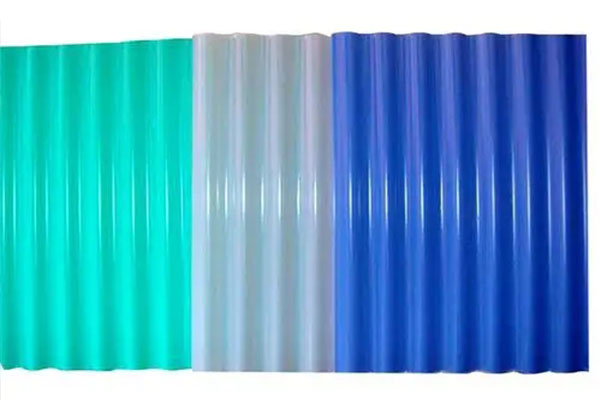

PVC wave board is used in high-class factory building, steel structure factory building. Warehouse, open fair, market passageway.
Drop us a line
Detail
PVC wave board is used in high-class factory building, steel structure factory building. Warehouse, open fair, market passageway.
Extruder Model | SJSZ-65/132 | ||
Die | T-type flat mould L=1000mm | Size of cooling mould 1000mm 540mm | haul-off power: frequency inverter |

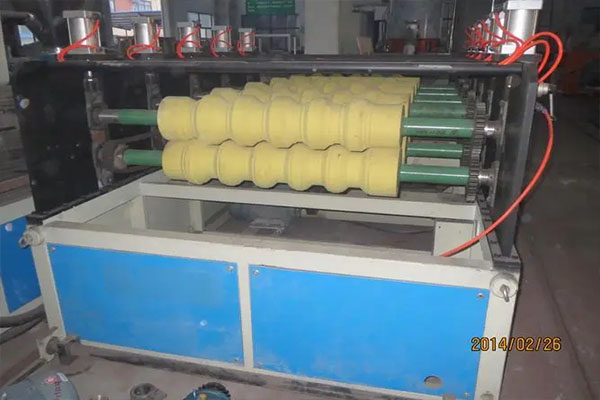

Forming machine | Cooling mode: by water | Cutting mode: Sheer type ( pneumatic control) | |

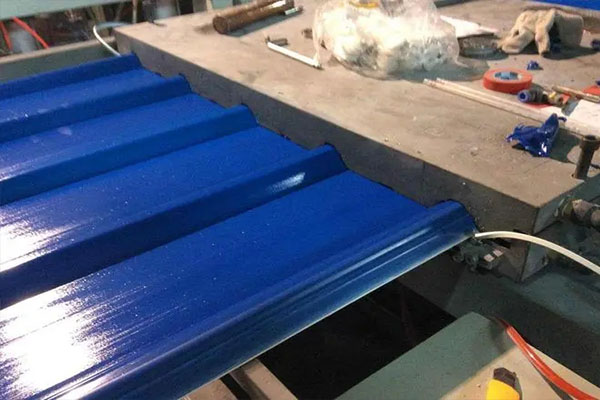

Big wave | R=15 H=16.5 Pitch of waves 63mm | Haul-off speed: 0.5-5m/min | Cutting follow-up space: 500mm |
Small wave | R=9 H=8 Pitch of waves 36mm | Haul-off roller: 1000mm | Pneumatic pressure: 0.4-0.6MPa |
