SD Series Plastic Board/Plate Production Line

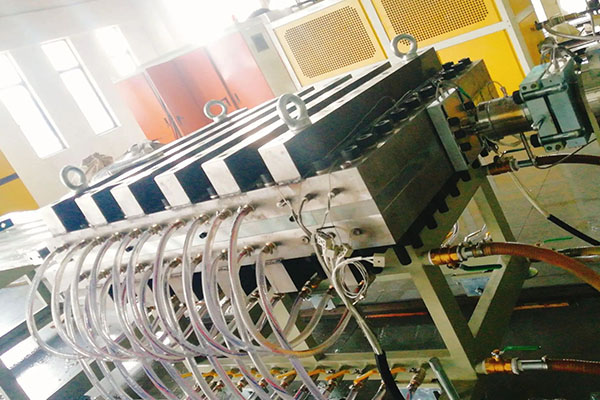

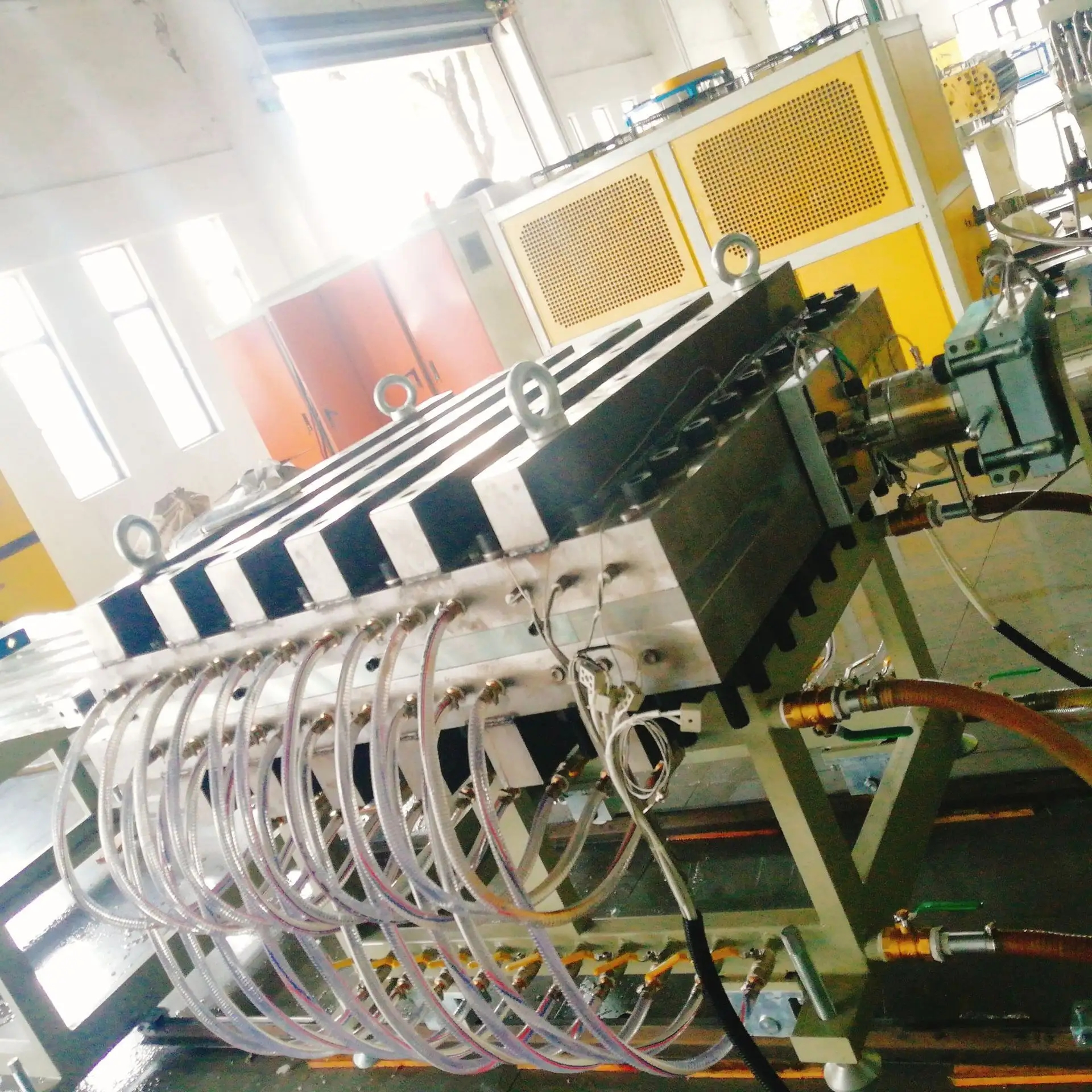

PP, PE Thick Board Production Line
PP, PE Thick Board Production Line is mainly used to produce the PE, PP, and ABS thick board with the thickness 20-100mm, width 750-1800mm.Main machineSJ120-SJ170 Single Screw ExtruderScrew L/D ratio(L/D)35:1Screw rotation speed(r/min)73-90Power of main motor（kw）132-220Production
Drop us a line
Detail

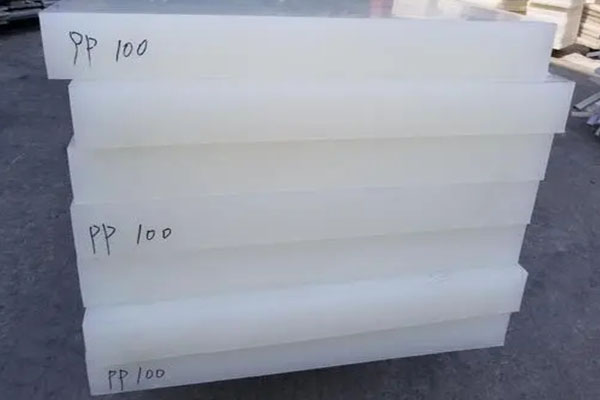

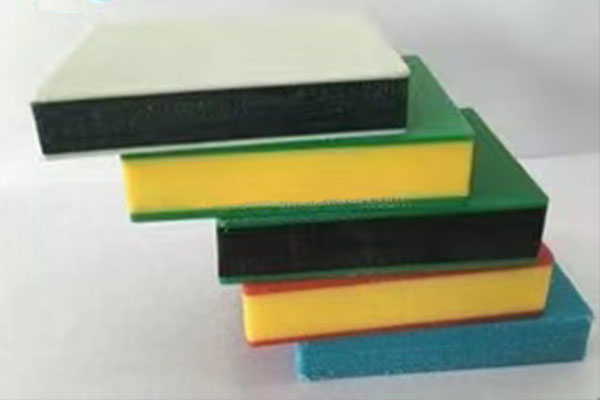

PP, PE Thick Board Production Line is mainly used to produce the PE, PP, and ABS thick board with the thickness 20-100mm, width 750-1800mm.
Main machine | SJ120-SJ170 Single Screw Extruder |
Screw L/D ratio (L/D) | 35:1 |
Screw rotation speed (r/min) | 73-90 |
Power of main motor （kw） | 132-220 |
Production capacity (kg/h) | 400-800 |

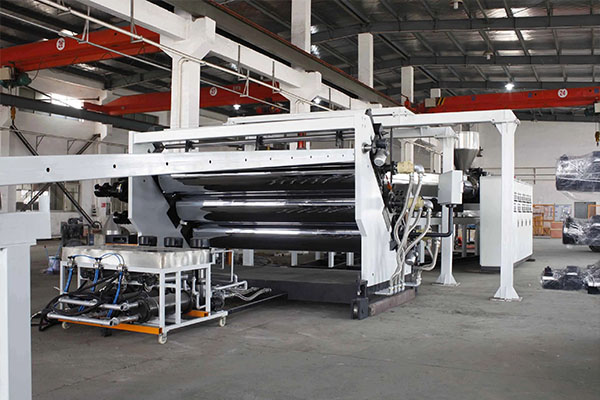

Mirror calendar shaft width × diameter mm | 1800×Φ500 |
Mirror calendar shaft rotation speed r/min | 0.15-3 |
Haul-off speed r/min | 0.15-3 |
Haul off power kw | 4 |
Cutting power kw | 4 |
Outline dimension (L× W ×H) m | 35-55×3.5×4.25 |
